500 Amp Inverter Welding Machine, 70 Voltage

 964.00

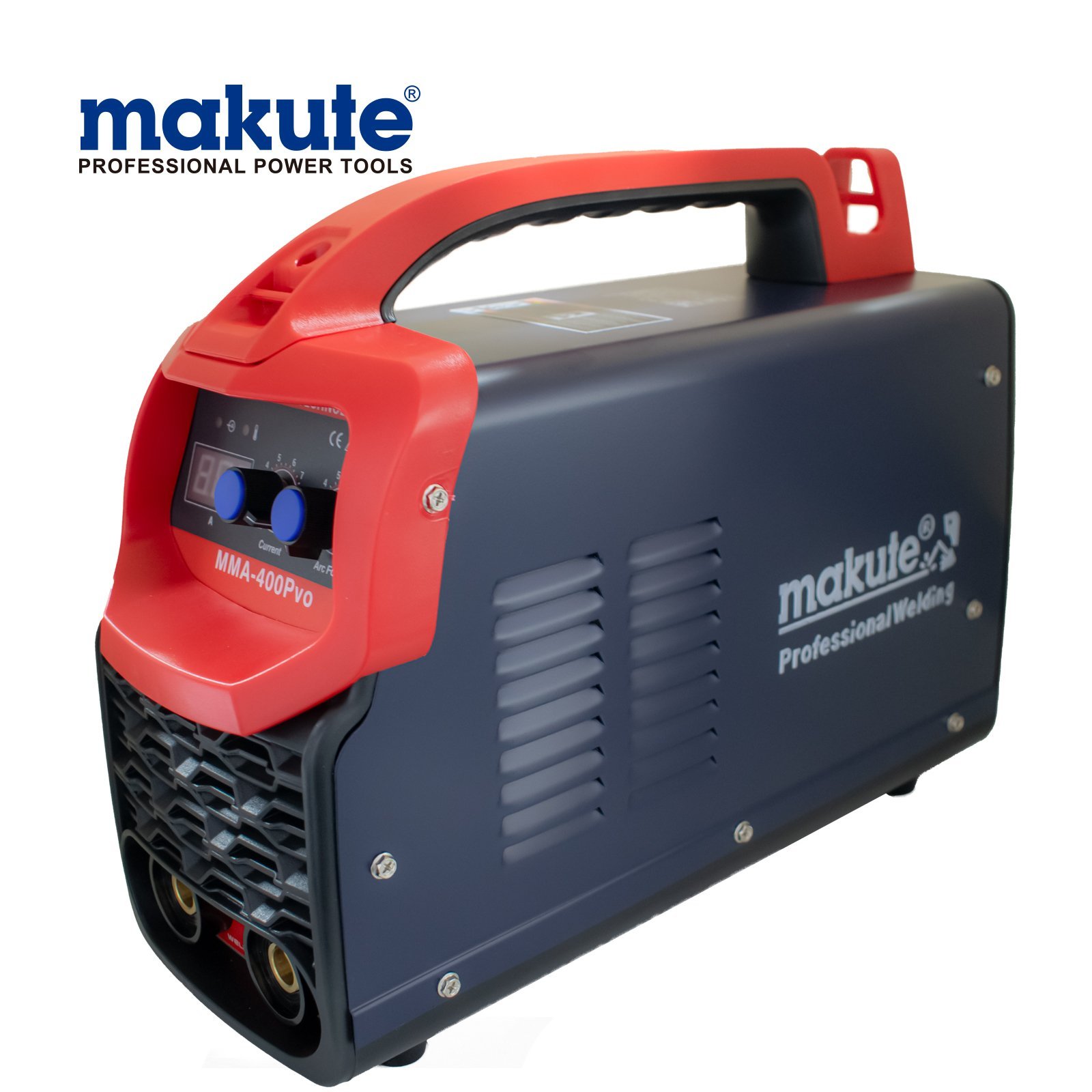

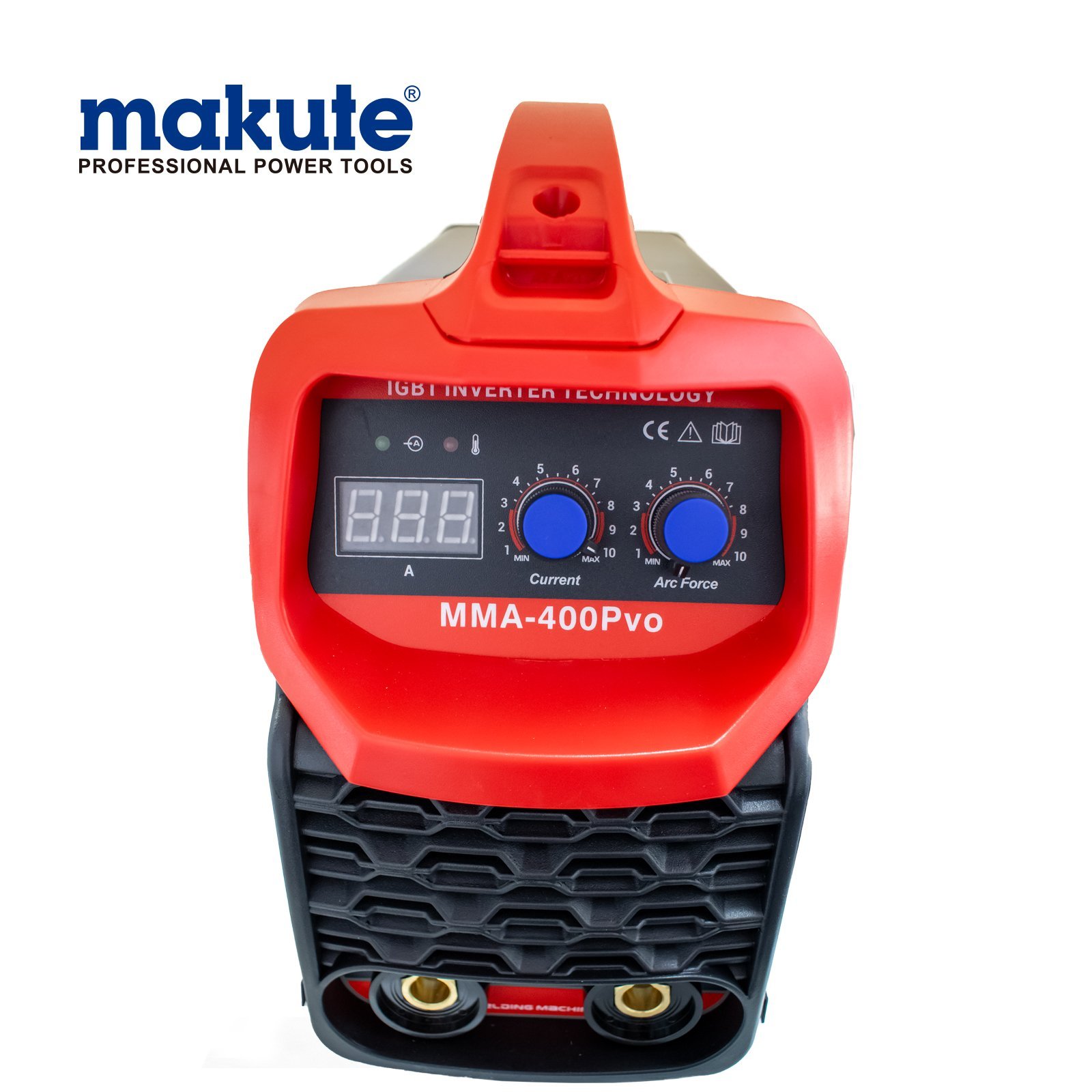

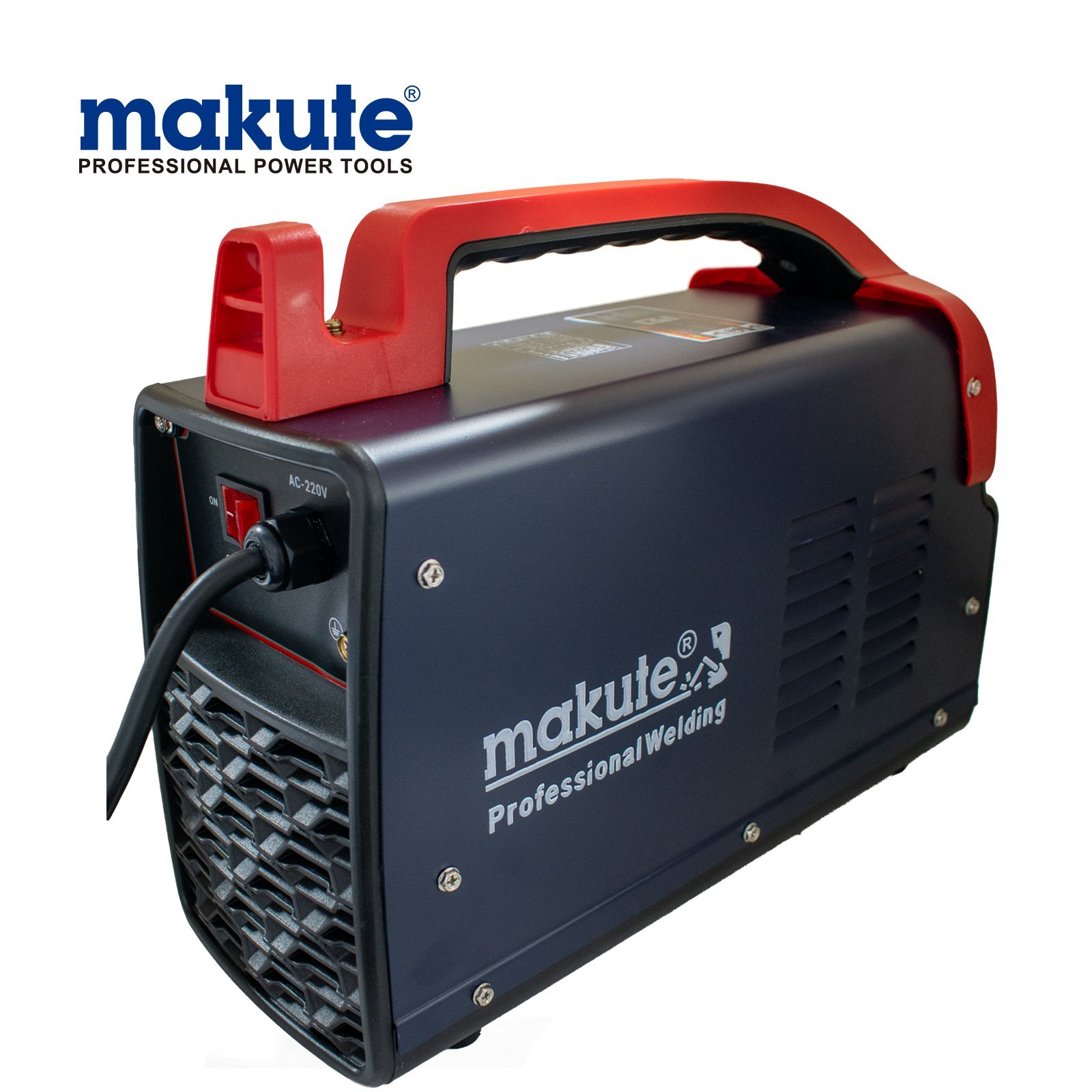

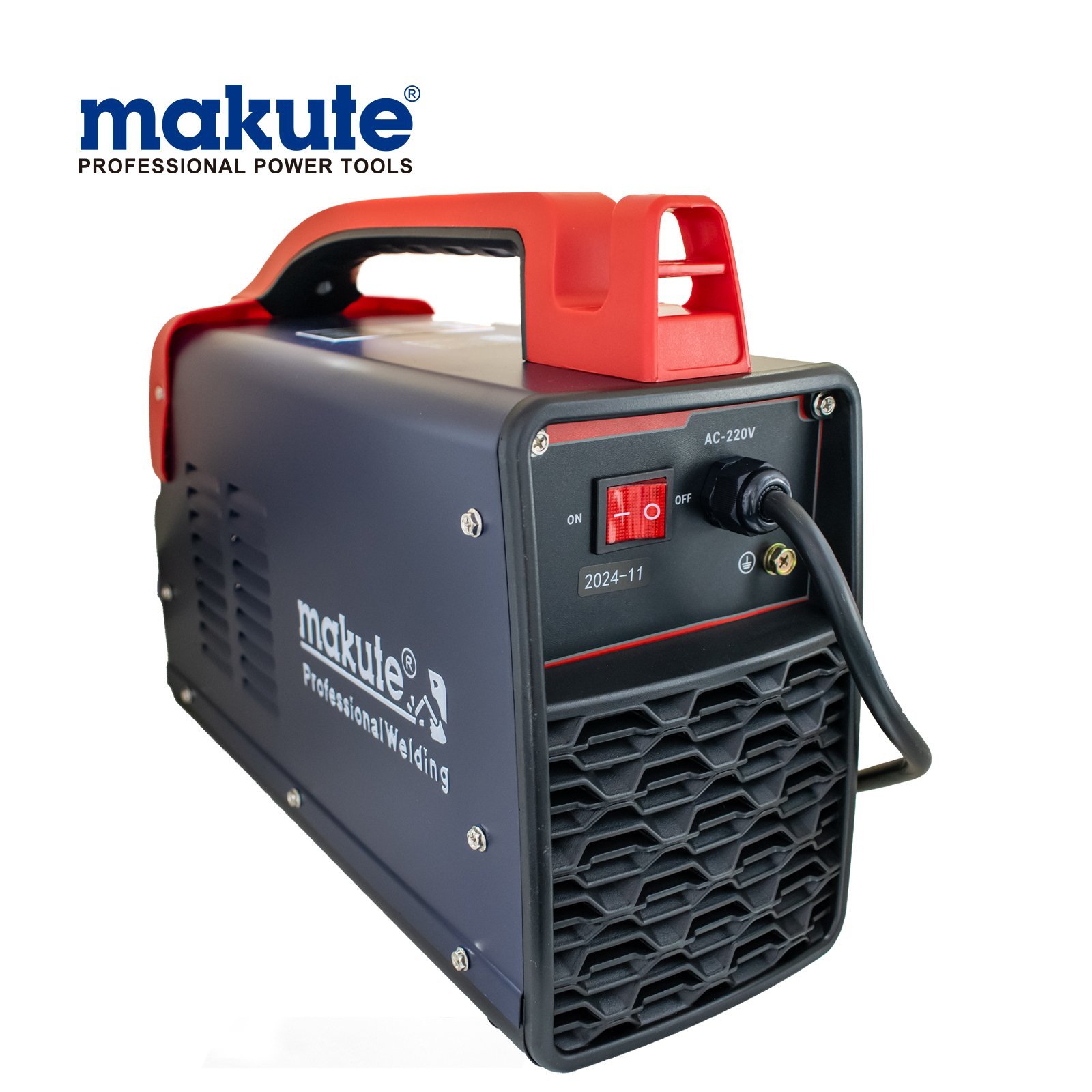

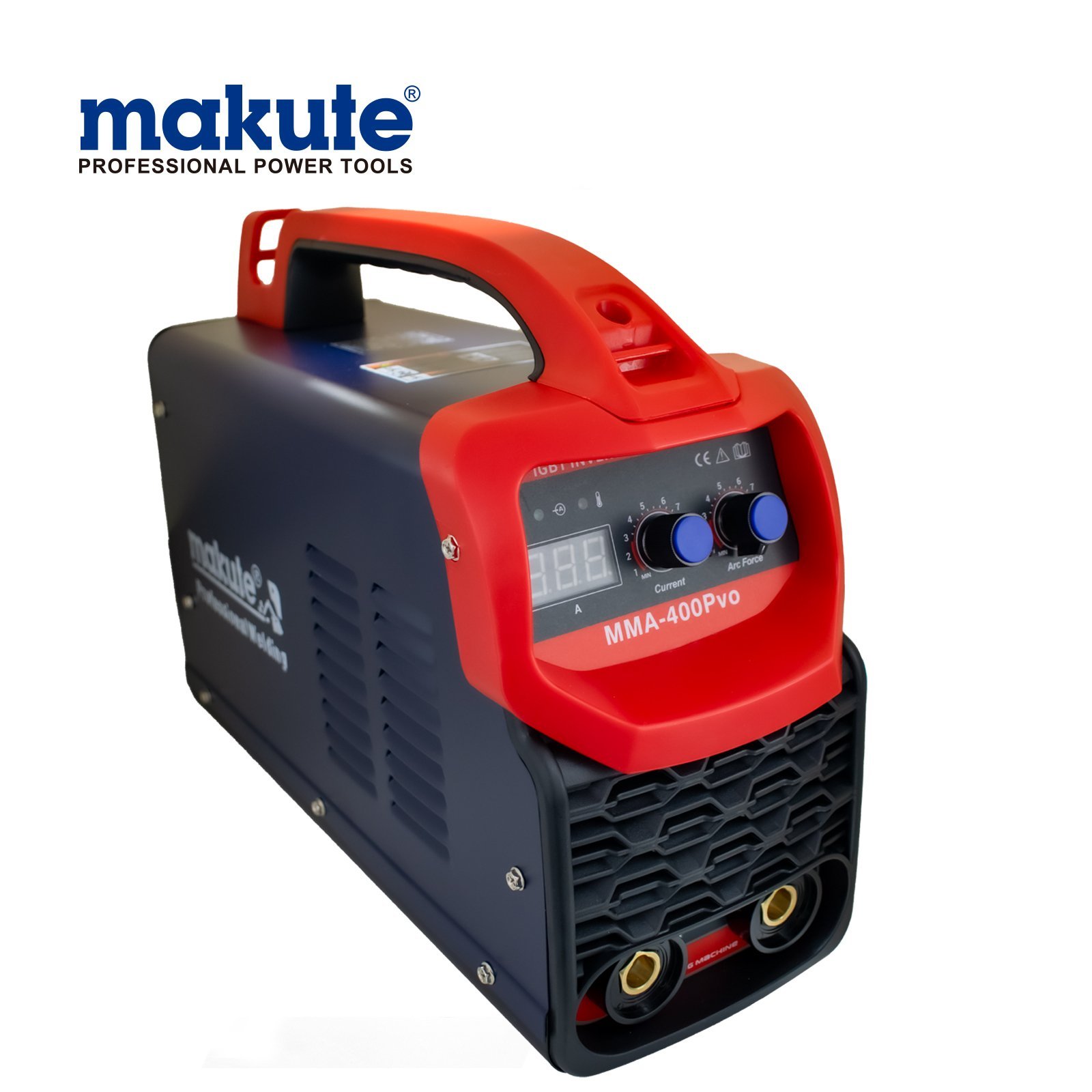

500 Amp Inverter Welding Machine, 70 Voltage
Based on advanced inverter control technology (IGBT), with high duty cycle and efficiency. Small size, light weight,
High-quality construction and energy saving, DC output control technology, welding current can be precisely controlled, easy start, with automatic over-current and over-heat protection functions,
Excellent welding arc properties, stable welding arc, good welding performance, less splash and noise, with anti-sticking, fast start, strong arc force, strong compensation ability,
Suitable for welding all kinds of materials, such as carbon steel, alloy steel, cast iron, stainless steel, etc.

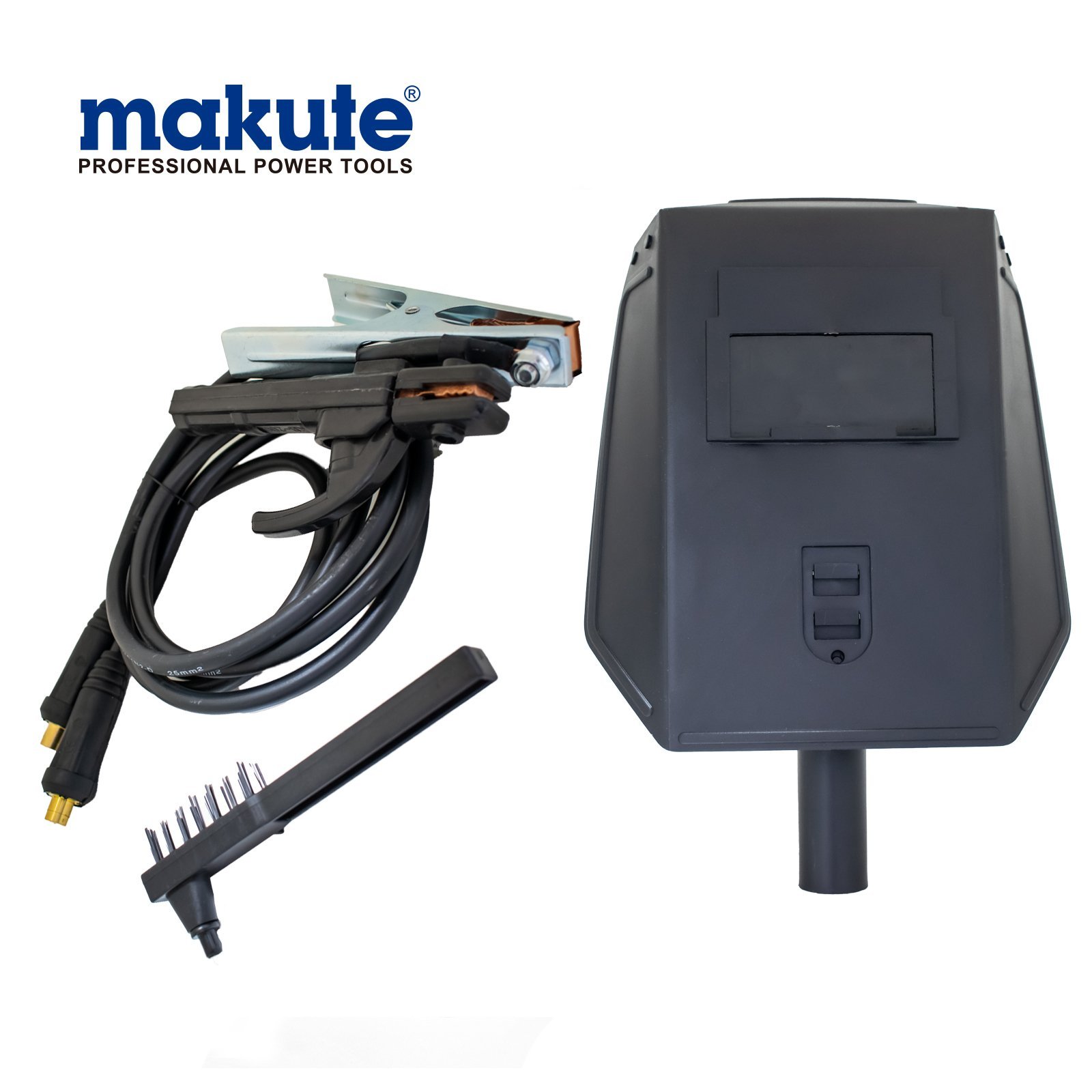

With complete accessories: electrode holder, ground clamp, welding cable, brush/hammer, protective mask.

SKUMMA-500PVO
Status1213>In stock
Contact us for more information

500 Amp Inverter Welding Machine, 70 Voltage
Input voltage: AC-220V
Frequency: 50/60 Hz
Input capacity: 15.6 kVA
Duty cycle: 60%
Current range: 20-500A
Efficiency: 85%
Usable electrode/maximum cutting thickness: 1.6-5.0 mm
Voltage: 70 volts
Insulation Class: F
Protection level: IP21S
Power source: AC
Grade: Industrial
